Keeley Electronics 30ms Double Tracker

Keeley Electronics 30 ms Double Tracker

Automatic Double Tracker, Vintage Chamber Reverb, True Stereo Chorus

Keeley 30ms Automatic Double Tracker. This stereo effect pedal offers an array of studio-style doubling effects used for creating thicker, fuller sounding instruments. Also included in the effect pedal is a reverb that simulates the famous chamber in Studio Two.

Main Features:

• Automatic Double Tracker, Slapback Delay, Reverb effect pedal
• Vintage 80’s rack chorus sounds in a compact pedal
• 3 modes
  • Dimension – Automatic Double Tracker – adds 2 additional voices, detunable by ±30 cents with Delay up to 30ms
  • Abbey Mode – approximates double tracking effect applied in the Abbey Road Studio
  • Slapback – adjustable classic slapback plus two adjustable doubled voices
• Internally switchable mono/stereo output via TRS jack and TRS insert cable
• Internally switchable PRO mode for even more control over the double tracked voices
• Pedalboard-friendly size – for compact rigs
• Made in Edmond, USA
• Powered by a regular 9V DC PSU
  (centre -, 2,1 mm, low ~65 mA current draw)

The Keeley 30ms is designed to work with guitar, bass, keyboard, even vocals
Says Chief Engineer Robert Keeley, “Since the early days of automatic double tracking, pioneered by Ken Townsend and John Lennon at Abbey Road Studios, this technique has become the de facto way of creating recordings that sound bigger and fuller by making it sound like two guitars, or singers, or instrumentalists are playing at same time. The Keeley 30ms Automatic Double Tracker offers musicians the ability to take these techniques with them out on the road with a wide range of tools needed for crafting unique double tracking schemes.”

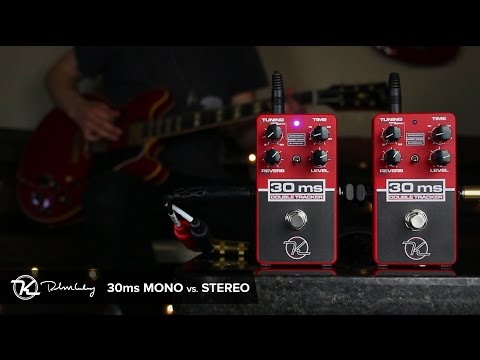

The Keeley Engineering 30ms Automatic Double Tracker pedal can be used in mono with a built in “Abbey Verb” reverb control, or in stereo as the Double Tracker Pro. The 30ms offers altered and detuned effects like a chorus pedal might sound, only without the regularity of a LFO oscillator in Dimension Mode. In this mode you have the ability to create up to two different voices for a stereo double tracked field. The user controls the tuning and delay for results that are stunning mono or, through two amplifiers, sublime stereo.

Abbey Mode offers something more similar to a conventional chorus in that it simulates synched tape decks running in parallel with varying tape speeds. Stereo or mono, this mode gives players a wide, lush sound without sounding like a conventional chorus pedal.

Lastly, the team at Keeley created a unique Slapback Mode for rockabilly sounds. The Slapback is now a double tracked echo with the two altered voices. Add the Keeley Abbey Verb to this mode to create stunning, new effects.

In Stereo Double Tracker Pro Mode, the unit drops the reverb channel in favor of complete control over the double tracked voices. Each of the two voices can be tuned up to 30 cents sharp or flat. Those voices are then delayed by up to 30 milliseconds for subtle to very distinctive doubling sounds. Via internal switches, users can program the wet output to have either dry and effected sounds or just the effect, giving them true double tracking in stereo– live.
