Keeley Electronics Caverns Delay/Reverb V2

Keeley Electronics Caverns V2

Delay and Reverb

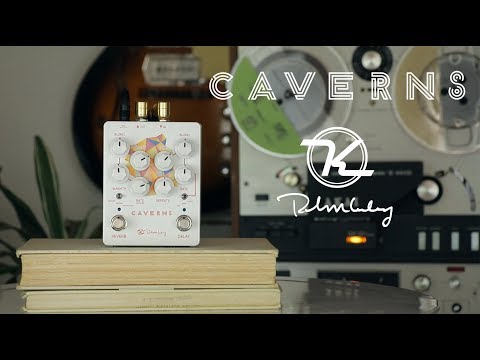

The Caverns Delay Reverb V2 dual-effect pedal combines delay and reverb for the perfect end to any pedal board. It features Keeley’s analog-style tape delay with modulation options. The 650ms of warm delay combine with Spring, Shimmer or Modulated Reverb. Caverns now comes with a True-Bypass or Trails option. Because of its small and compact design, the New Caverns is a perfect fit for any fly-rig or small board where you have tight space requirements. The New V2 features Keeley’s most popular time-based effects, blended perfectly via a design fine-tuned for over 2 years. Simply put, it will be an amazing addition to any board.

Main Features:

• Delay and Reverb effect pedal
• 650ms warm delay – based on Keeley’s Magnetic Echo ciruit to emulate analog tape delay
• 3- way switchable delay modulation – for adding wow and flutter to the repeats
• 3 cavernous reverb modes – Spring, Modulation and Shimmer
• Pro Rig designed, remote control thru 1/4″ jacks for live use with pedal switcher systems
• 100% analog dry signal, audiophile designed input to output
• Mono True-Bypass/Trails, via internal DIP switches
• Top-Mounted Jacks – for a compact pedalboard layout
• Made in Edmond, USA
• Powered by a regular 9V DC PSU
  (centre -, 2,1 mm, low ~75 mA current draw)

The New Caverns Delay Reverb V2 builds on the old Caverns pedal by giving players a more open and logical control layout with more space between the foot switches.
The Reverb side of the pedal features 3 cavernous sounds. Spring Mode, a Blackface Amp style spring reverb with F Style Tremolo. Modulation Mode, which adds Choral modulation to the reverb for a huge, cavernous space. And finally Shimmer Mode, a Reverb with emphasis on octave-up voices in the reverb trails.

The Delay side of the pedal incorporates Keeley’s popular Magnetic Echo circuit, which is designed to emulate analog tape delay lines. Three way switchable modulation gives you options for adding Wow and Flutter to the repeats. Perfectly voiced echoes sit well in the mix, either clean or with distortion.

Top-Mounted Jacks allow for a compact pedalboard layout. True-Bypass or Trails option gives you the freedom to create huge caverns of sounds and lets them ring out even after you turn the pedal off. Keeley’s buffers are engineered to retain your tone and to feed your amplifier a full-strength signal.

The Caverns Delay Reverb V2 is entirely built in the US. Keeley’s veteran crew builds the most reliable and road-worthy gear.
